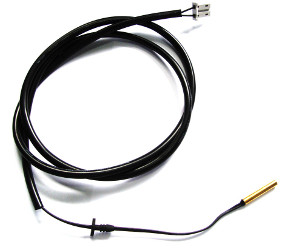

IP66 Cable Probe Temperature Sensors Long-term Stability With Aluminum , Brass , Copper
جزئیات محصول:
محل منبع: | Dongguan,Guangdong,China |
نام تجاری: | UCHI |
گواهی: | ROHS,SGS |
شماره مدل: | CWF103F-3950F |
پرداخت:
مقدار حداقل تعداد سفارش: | 1000PCS |
---|---|
قیمت: | Negotiable |
جزئیات بسته بندی: | Bulk 500PCS/BAG |
زمان تحویل: | 7 working days |
شرایط پرداخت: | T/T,Paypal,Western Union,Money gram |
قابلیت ارائه: | 8000,000,000PCS Per Month |
اطلاعات تکمیلی |
|||
برجسته: | ,,ntc probe temperature sensor |
---|
توضیحات محصول
IP66 Cable Probe Temperature Sensors Long-term Stability With Aluminum , Brass , Copper
Quick Detail:
Description:
UCHI has a breadth of high volume core temperature sensing products for Industrial HVACR applications. UCHI's range of Thermometrics Cable Probe Temperature Sensors consist of resin potted NTC thermistors encapsulated within metal housings, extension cables and connector systems. These sensors have been used in industrial applications for decades with a proven robust quality record in the field.
Applications:
Specifications:
Part Number |
Housing Material |
Housing Dimensions / mm |
Resistance at (T ref ) / Ω |
B (25/85) / K |
Cable description |
Cable length / mm |
---|---|---|---|---|---|---|
JS4710 | Brass | 5x30 |
12,000 (25) 950 (100) ±5% |
3740 ±1% | PVC (single ins) | 300 |
JS6234 | Brass | 5x30 |
12,000 (25) 950 (100) ±5% |
3740 ±1% | PVC (single ins) | 1500 |
JS6957 | Brass | 5x30 |
12,000 (25) 950 (100) ±5% |
3740 ±1% | PVC (single ins) | 135 |
JS8042 | Brass | 5x30 |
12,000 (25) 950 (100) ±5% |
3740 ±1% | PVC (single ins) | 300 |
JS4833 | Brass | 5x30 | 10,000 (25) ±1% | 3977 ±0.75 | PVC (single ins) | 1485 |
JS4832 | Brass | 5x30 | 10,000 (25) ±1% | 3977 ±0.75 | PVC (single ins) | 1235 |
JS5514 | Brass | 5x30 | 10,000 (25) ±3% | 3977 ±0.75 | PVC (single ins) | 840 |
JS5515 | Brass | 5x30 | 10,000 (25) ±3% | 3977 ±0.75 | PVC (single ins) | 840 |
JS4676 | Aluminium | 5.8x26 | 10,000 (25) | 3960 ±1% | PVC (single ins) | 300 |
JS3686 | PVC Sleeve | - | 10,000 (25) | 3960 ±1% | PVC (single ins) | 700 |
JS5446 | Aluminium | 5.8x26 | 10,000 (25) | 3960 ±1% | PVC (single ins) | 800 |
JS7231 | Copper | 6.5x32 | 10.000 (25) ±3% | 3977±0.75% | PVC (single ins) | 1000 & 2000 |
Part Number | Connector system | Grommet | Series Resistor / Ω | Max Temp / ºC |
V(ac) strength/ V (1mA) |
IP Rating |
---|---|---|---|---|---|---|
JS4710 | Molex 5559 | Yes | No | 105 | 750 | IP66 |
JS6234 | Molex 5559 | Yes | No | 105 | 750 | IP66 |
JS6957 | Molex 5559 | Yes | No | 105 | 750 | IP66 |
JS8042 | Molex 5559 | No | No | 105 | 750 | IP66 |
JS4833 |
Polehousing CTH1300/2 |
Yes | No | 105 | 1500 | IP66 |
JS4832 |
Polehousing CTH1300/2 |
Yes | No | 105 | 1500 | IP66 |
JS5514 |
Polehousing CTH1300/2 |
Yes | 330 | 105 | 1500 | IP66 |
JS5515 |
Polehousing CTH1300/2 |
Yes | 470 | 105 | 1500 | IP66 |
JS4676 | Molex 5559 | No | No | 105 | 750 | IP66 |
JS3686 | Molex 5559 | No | No | 105 | 750 | IP66 |
JS5446 | Molex 5559 | No | No | 105 | 750 | IP66 |
JS7231 | - | No | No | 105 | 750 | IP66 |
Competitive Advantage:
- Factory supply directly
- Completed certificates such as UL,VDE,SGS,etc and high quality available
- Quick delivery
- Best after-sales services
- OEM & ODM available
