• Calibrations Type CSP NTC Temperature Sensors Various Calibration Temperature Ranges
Calibrations Type CSP NTC Temperature Sensors Various Calibration Temperature Ranges

Calibrations Type CSP NTC Temperature Sensors Various Calibration Temperature Ranges

جزئیات محصول:

محل منبع: Dongguan,Guangdong,China
نام تجاری: UCHI
گواهی: ROHS,SGS
شماره مدل: CWF103F-3950F

پرداخت:

مقدار حداقل تعداد سفارش: 1000PCS
قیمت: Negotiable
جزئیات بسته بندی: Bulk 500PCS/BAG
زمان تحویل: 7 working days
شرایط پرداخت: T/T,Paypal,Western Union,Money gram
قابلیت ارائه: 8000,000,000PCS Per Month
بهترین قیمت مخاطب

اطلاعات تکمیلی

برجسته:

,

,

high precision temperature sensor

توضیحات محصول



Calibrations Type CSP NTC Temperature Sensors Various Calibration Temperature Ranges





Quick Detail:



Ultrastable
Calibrated to 0.01°C accuracy
Suitable for liquid immersion
Various calibration temperature ranges, lead lengths and coatings available





Description:

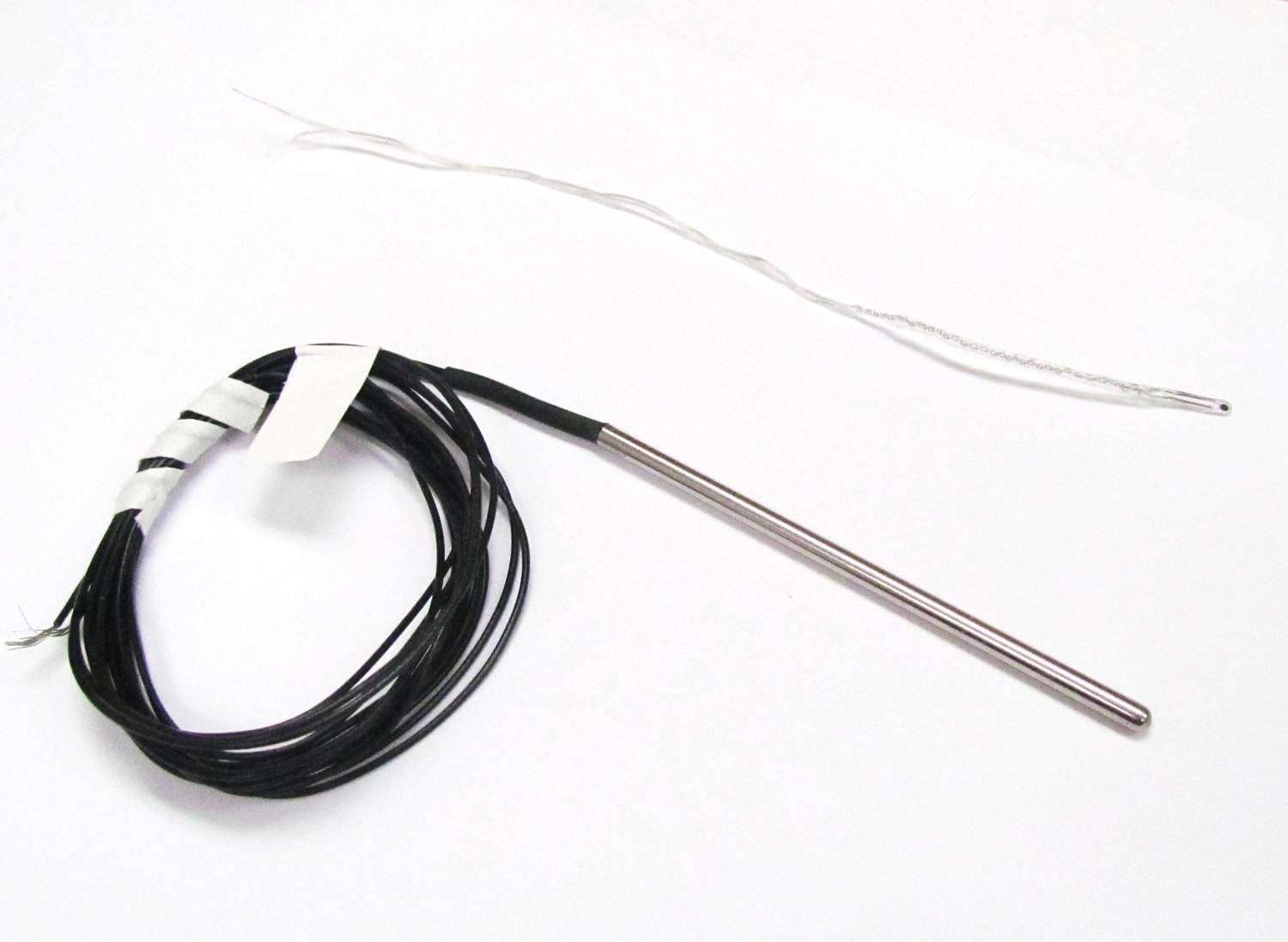

The Type CSP Temperature Standards are ultrastable probe thermistors which have been calibrated to an accuracy of 0.01°C. The standard unit has a thin, conformal coating of silicone rubber over the entire unit; this makes it suitable for immersion in a water bath. They are also available with stainless steel sensor housings, or they can be encapsulated into various sheaths.





Applications:



All units can be supplied with calibrations over different temperature ranges, with longer leads; and with various coatings.





Specifications:







Two types of CSP Thermoprobes are stocked for quick delivery: the CSP60BA252M with a nominal resistance of 2500 ohms @25°C; it is furnished with calibration over the range of 0° to 50°C. The CSP60BT103M has a nominal resistance of 10K ohms @25°C and is furnished with calibration  over the range of 0° to 100°C. The calibration table normally furnished with the CSP60BA252M provides data every 0.25°C between 0° and 50°C. The table furnished with the CSP60BT103M provides data every 0.5°C over the range of 0° to 100°C. Both units are furnished with interpolation equations which are accurate to 0.01°C. Tables with calibration data furnished every 0.01, 0.05 or 0.1°C are also available.



csp-1

TEMPERATURE STANDARDS - TYPE CSP





Nominal Curve for CSP60BT103M



csp-2



CODING



ORDERING CODE DESCRIPTION CSP60BA252M Nominal resistance 2500 ohms @ 25°C, calibration table every 0.25°C between 0 and 50°C
CSP60BT103M Nominal resistance 10K ohms @ 25°C, calibration table every 0.5°C between 0 and 100°C
OPTIONS A113 - CSP60B = Standard in vinyl tubing (60°C Maximum Temperature)
A207A - CSP60B = Standard in open tip stainless steel housing.
A733F - CSP60B = Standard in closed end stainless steel housing.





Competitive Advantage:



  1. Factory supply directly

  2. Completed certificates such as UL,VDE,SGS,etc and high quality available

  3.  Quick delivery

  4. Best after-sales services

  5. OEM & ODM available
