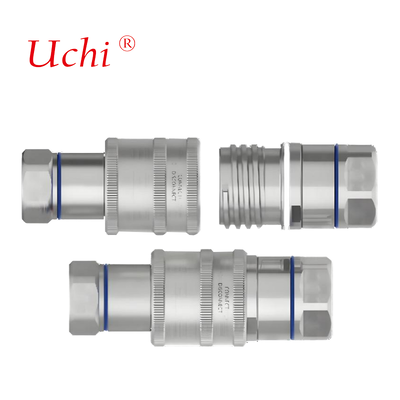

CNC Machined Quick-Connect Fitting Parts For Tube-Type Cold Plates
جزئیات محصول:
| محل منبع: | Dongguan ， Guangdong ، چین |
| نام تجاری: | Uchi |
| گواهی: | SMC |
| شماره مدل: | اتصالات اتصال سریع |
پرداخت:
| مقدار حداقل تعداد سفارش: | 100 عدد |
|---|---|
| قیمت: | قابل مذاکره |
| شرایط پرداخت: | T/T، پی پال، وسترن یونیون، مانی گرام |
| قابلیت ارائه: | 50000000 قطعه در هر ماه |
|
اطلاعات تکمیلی |
|||
| مواد: | آلومینیوم، فولاد ضد زنگ، برنج، فولاد کربن، تیتانیوم ... | دقت: | 0.002 ± 0.005 ± میلی متر |
|---|---|---|---|
| گواهی: | ISO 9001,ROSH,CE,ISO16949 | نوع ماشینکاری: | تراشکاری CNC، فرز CNC، حفاری CNC و غیره. |
| سطح: | آنودیزه شده، پولیش شده | تایپ کنید: | Broaching ، Drilling ، Etching / Machining Chemical ، لیزر ... |
| برجسته کردن: | CNC machined quick-connect tube fittings,liquid cooling plate tube connectors,cold plate quick-connect fittings,liquid cooling plate tube connectors,cold plate quick-connect fittings |
||
توضیحات محصول

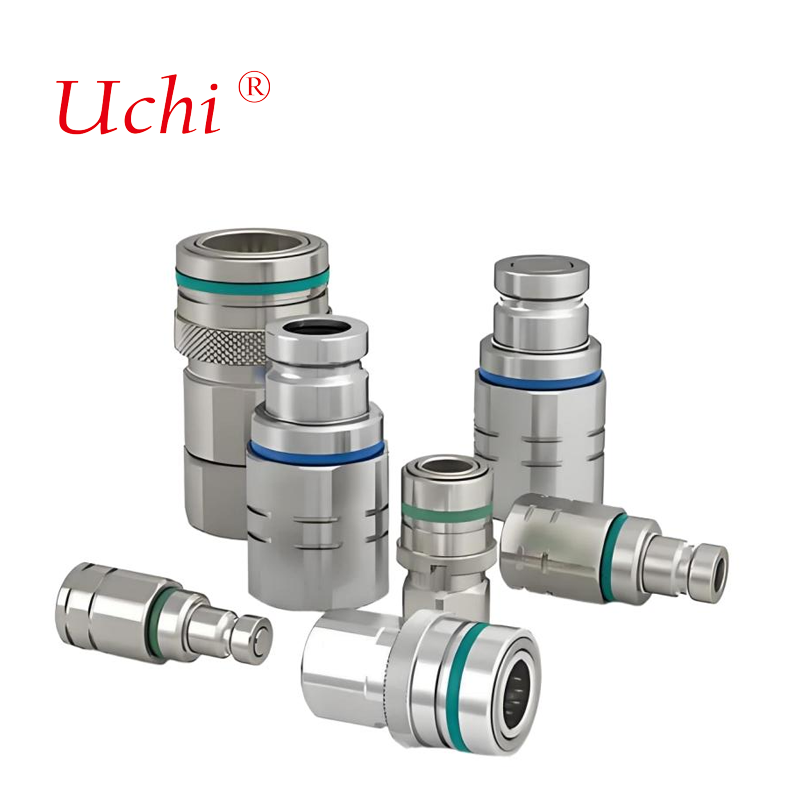

CNC Machined Quick-Connect Fitting Parts For Tube-Type Cold Plates
Precision CNC machined quick-connect fitting parts designed specifically for tube-type cold plates in liquid cooling systems.
Manufacturing Specifications
| Processing | CNC Turning, CNC Milling |
| Materials |
Aluminum: 2000 series, 6000 series, 7075, 5052, etc. Stainless steel: SUS303, SUS304, SS316, SS316L, 17-4PH, etc. Titanium: Grade F1-F5 Brass: 260, C360, H59, H60, H62, H63, H65, H68, H70, etc. Steel: 1214L/1215/1045/4140/SCM440/40CrMo, etc. |
| Surface Treatment | Anodized, Bead Blasted, Silk Screen, PVD Plating, Zinc/Nickel/Chrome/Titanium Plating, Brushing, Painting, Powder Coated, Passivation, Electrophoresis, Electro Polishing, Knurl, Laser/Etch/Engrave etc. |
| Tolerance | ±0.002 ~ ±0.005mm |
| Surface Roughness | Min Ra 0.1~3.2 |
Material Selection Guide for Liquid Cooling Systems
| Application Scenario | Recommended Main Body Material | Recommended Seal Material | Core Advantages | Selection Notes |
|---|---|---|---|---|
| Data center server liquid-cooled plates | Brass / 6061 Aluminum Alloy | Nitrile Butadiene Rubber (NBR) | Moderate cost, excellent machinability, compatible with water-glycol coolant; easy assembly and disassembly | System working pressure ≤ 3.0 MPa; avoid long-term high-temperature (＞100℃) conditions |
| New energy vehicle power battery liquid cooling circuit | 304/316 Stainless Steel | Fluororubber (FKM/Viton) | High pressure resistance (3.0-6.0 MPa), vibration and impact resistance; wide temperature tolerance | Comply with ISO 16028 automotive industry standards |
| Outdoor charging pile liquid cooling system | 316 Stainless Steel / Glass Fiber Reinforced PA66 | Fluororubber (FKM/Viton) | 316 stainless steel resists outdoor humid corrosion; engineering plastic features light weight and good insulation | Meet IP67 or higher protection level |
| High-temperature liquid cooling for industrial equipment | 316 Stainless Steel | Perfluoroelastomer (FFKM) | Ultra-high temperature resistance (≤200℃), compatible with strong corrosive coolants | High cost, suitable for high-end industrial scenarios |
| Portable liquid cooling for consumer electronics | Polyoxymethylene (POM) / Aluminum Alloy | Silicone Rubber (VMQ) | Light weight, excellent insulation; resistance to extreme low temperature | Only for low-pressure (≤1.0 MPa), normal/low-temperature conditions |
Material Selection Principles
- Material compatibility first: For water-glycol coolant, prioritize brass/aluminum alloy + NBR/FKM; for oil-based coolants, use FKM/FFKM seals
- Working condition parameter matching: Rated pressure resistance should be ≥ 1.5 times system peak pressure; temperature resistance should cover system extremes
- Balance between cost and performance: Choose brass/NBR for general scenarios; upgrade to stainless steel/FKM for high-demand applications
Manufacturing Capabilities
Our mold workshop features advanced equipment including:
- 22 sets of electric discharge machines (EDM), including 2 MAKINO mirror EDM machines
- 9 wire-cut EDM machines (low-speed), including 3 Seibu and 1 Sodick machines from Japan
- 7 spark erosion machines, 10 grinding machines, 2 milling machines and 1 lathe
Equipment Specifications
- Table size: 500×350 mm
- Rapid traverse speed: 5000 mm/min
- Maximum workpiece weight: 500 kg
- Maximum electrode weight: 50 kg
High Precision Machining
Utilizing SuperSpark4 and IES (Intelligent Expert System) technologies for advanced adaptive power supply and jump control to stabilize the EDM process and improve machining precision. Equipped with ultra-surface and ultra-edge generator technologies for excellent surface finish and metallurgical quality.
Liquid Cooling System Technology
High-power liquid cooling systems require heat sinks capable of rapid heat absorption. Leveraging the high specific heat capacity of liquids, our systems transfer large amounts of heat through liquid flow, capable of dissipating heat ranging from several hundred watts to over one kilowatt.
Liquid Cold Plate Varieties
- Buried-tube Liquid Cold Plate: Fabricated by grooving plates, burying and welding copper tubes inside, then hermetically sealing via welding
- Inserted-tube Liquid Cold Plate: Manufactured by embedding copper tubes onto aluminum plate surfaces using welding or bonding processes
- Channel-type Liquid Cold Plate: Internal flow channels formed on copper or aluminum substrates through drilling, extrusion, and precision machining
- Liquid Cooling Block: For high-power chip heat dissipation with internal flow channels created through skiving fin technology
Product Applications
Quality Assurance
We maintain rigorous quality standards with comprehensive testing equipment including:
- 1 Coordinate Measuring Machine
- 1 projector instrument
- 2 water high pressure testing machines
- 4 thermal resistance testing machines
- 2 liquid leakage testing machines
Customer Service Commitment
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
