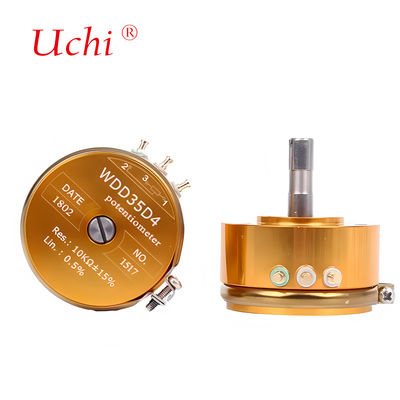

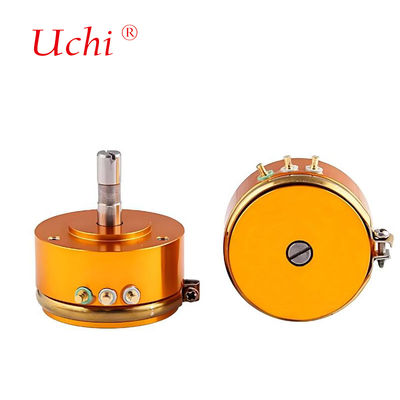

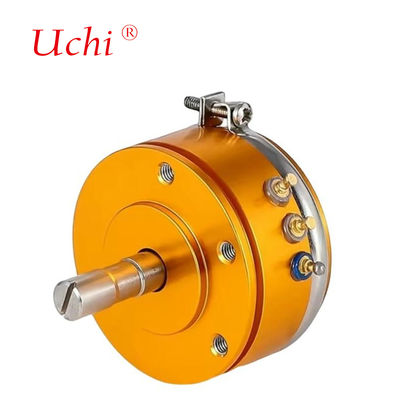

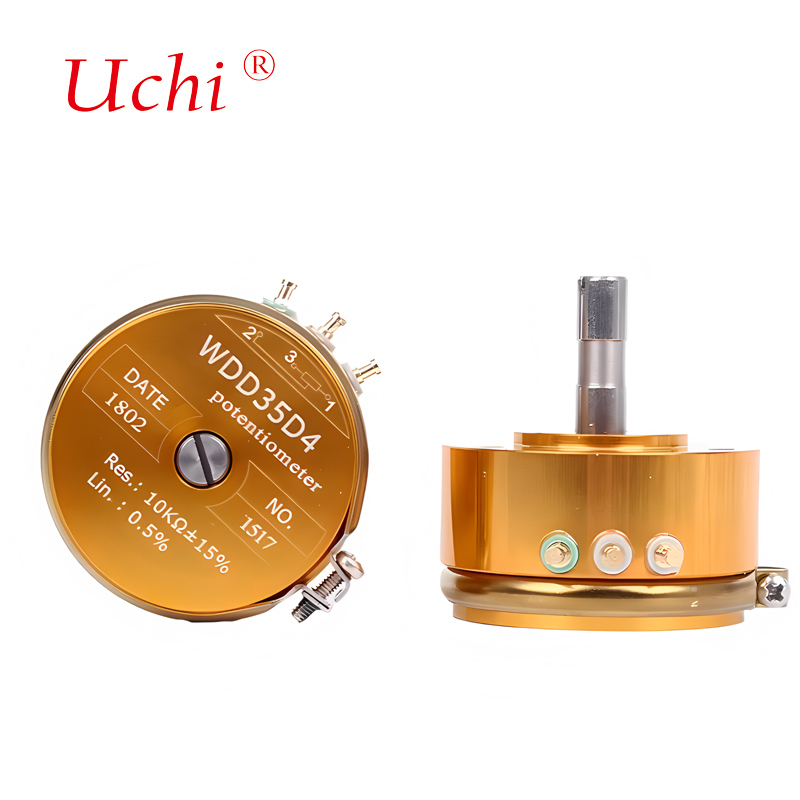

WDD35D4 Rotary Potentiometer Precision Conductive Plastic Potentiometer
جزئیات محصول:
| محل منبع: | Dongguan ， Guangdong ، چین |
| نام تجاری: | Uchi |
| گواهی: | SMC |
| شماره مدل: | WDD35D |
پرداخت:
| مقدار حداقل تعداد سفارش: | 100 قطعه |
|---|---|
| قیمت: | قابل مذاکره |
| شرایط پرداخت: | T/T، پی پال، وسترن یونیون، مانی گرام |
| قابلیت ارائه: | 50000000 قطعه در هر ماه |
|
اطلاعات تکمیلی |
|||
| مقاومت: | 1kΩ~10kΩ | تحمل مقاومت: | ± 15٪ |
|---|---|---|---|
| دمای عملیاتی: | -55℃~ +125℃ | قدرت امتیازی: | 2W (@70℃) |
| اندازه / ابعاد: | 39*30 میلی متر | قطر شفت: | 6 میلی متر |
| طول شفت: | 19 میلی متر یا 33 میلی متر | ||
| برجسته کردن: | precision conductive plastic potentiometer,rotary potentiometer with warranty,WDD35D4 precision potentiometer,rotary potentiometer with warranty,WDD35D4 precision potentiometer |
||
توضیحات محصول
WDD35D4 Rotary Potentiometer Precision Conductive Plastic Potentiometer
The WDD35 series products feature a hard aluminum alloy shell with conductive plastic resistance material, precision molded and laser-trimmed for fine adjustment. The premium metal brush surge device and stainless steel high-speed bearings ensure exceptional performance including long mechanical life, high resolution, smooth rotation, and low dynamic noise.
Product Features
- Hard anti-rust aluminum shell construction
- Molded integrated conductive plastic matrix
- Stainless steel shaft with high-speed bearing
- Precious metal brushes and current collector components
- High linear accuracy and long mechanical life
- Excellent resolution with low dynamic noise
Specification Parameters
| Parameter | Value |
|---|---|
| Model Number | WDD35D4 |
| Type | Precision Potentiometer |
| Technology | Conductive plastic |
| Resistance | 1k, 2k, 5k, 10k |
| Resistance Tolerance | ±15% |
| Rated Power | 2W |
| Max. Operating Voltage | 500V |
| Operating Temperature | -55℃ to +125℃ |
| Diameter | 36mm |
| Rotation | 360° continuous |
| Actuator Diameter | 0.248" (6.30mm) |
| Shaft Size | 0.236" (6.00mm) |
Product Size
Application Areas
WDD35D4 is suitable for network communication equipment, instrument equipment, industrial machinery, medical equipment, injection molding machines, crane torque control, valves, pedal testing, robotic arms, pan-tilt control, papermaking machinery, and textile machinery.
Product Catalog
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
