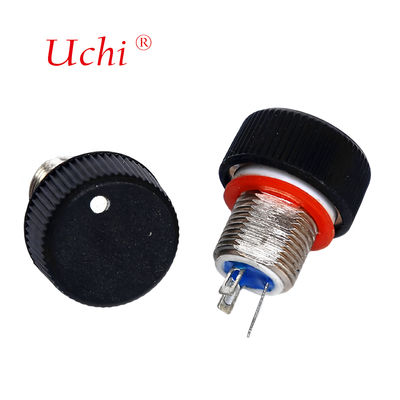

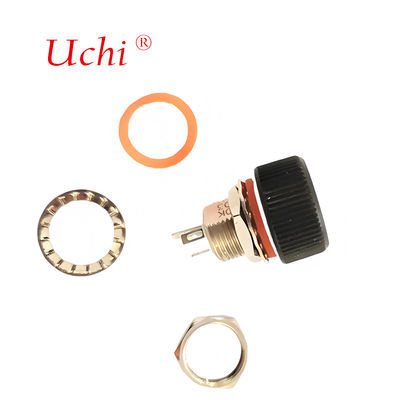

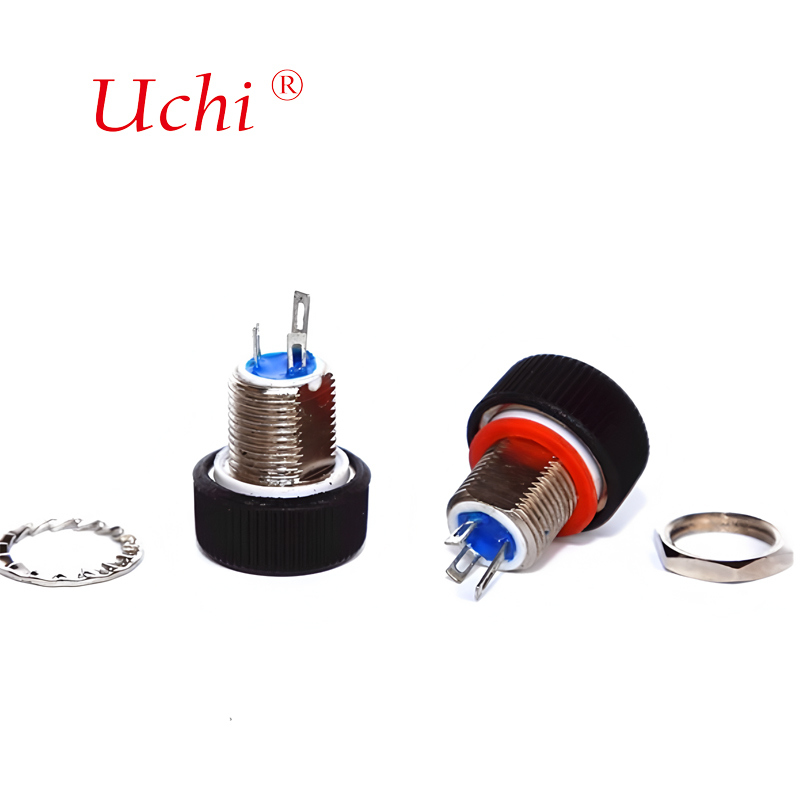

P16NP (WI1609) Metal Ceramic Potentiometer 1w Fine-tuning Knob Potentiometer
جزئیات محصول:
| محل منبع: | Dongguan ， Guangdong ، چین |
| نام تجاری: | Uchi |
| گواهی: | SMC |
| شماره مدل: | P16NP (WI1609) |
پرداخت:
| مقدار حداقل تعداد سفارش: | 100 قطعه |
|---|---|
| قیمت: | قابل مذاکره |
| شرایط پرداخت: | T/T، پی پال، وسترن یونیون، مانی گرام |
| قابلیت ارائه: | 50000000 قطعه در هر ماه |
|
اطلاعات تکمیلی |
|||
| محدوده مقاومت استاندارد: | 100 تا 2 مگا اهم | تحمل مقاومت: | 10 ± |
|---|---|---|---|
| حداقل مقاومت مطلق: | حداکثر 1% یا حداکثر 10 اهم | تنوع مقاومت تماس: | حداکثر 3 درصد |
| مقاومت عایق: | 500 Vdc، 1000 مگا اهم در دقیقه | قدرت دی الکتریک: | 101.3 kPa 900 Vac 8.5 kPa 500 Vac |
| زاویه تنظیم: | 265 درجه اسمی | رتبه برق (حداکثر 200 ولت): | 1 وات (70 درجه سانتیگراد)، 0 وات (125 درجه سانتیگراد) |
| محدوده دما: | -55 درجه سانتیگراد تا +125 درجه سانتیگراد | ضریب دما: | ±250×10-6/°C یا ±100×10-6/°C |
| برجسته کردن: | metal ceramic potentiometer 1w,fine-tuning knob potentiometer,precision potentiometer with warranty,fine-tuning knob potentiometer,precision potentiometer with warranty |
||
توضیحات محصول
P16NP (WI1609) Metal Ceramic Potentiometer 1w Fine-tuning Knob Potentiometer
The P16 is a revolutionary concept in panel mounted potentiometers. This unique design consists of a knob driving and incorporating a cermet potentiometer. Only the mounting hardware and terminals are situated on the back side of the panel, minimizing required clearance.
Product Features
- P16 - version for professional and industrial applications (cermet) 1 W at 40℃
- PA16 - version for professional audio applications (conductive plastic) 0.5 W at 40℃
- Compact (integrated) design
- High dielectric strength: 2500 VRMs
- Fully sealed and panel sealed construction
- Metallic or plastic knob options available
- Custom knob options upon request
Specification Parameters
Electrical Characteristics
| Standard Resistance Range | 100 to 2 megohms (see standard resistance table) |
|---|---|
| Resistance Tolerance | ±10% std. (tighter tolerance available) |
| Absolute Minimum Resistance | 1% or 10 ohms max. (whichever is greater) |
| Contact Resistance Variation | 3% max. |
| Insulation Resistance | 500 Vdc, 1000 megohms min. |
| Dielectric Strength | 101.3 kPa 900 Vac 8.5 kPa 500 Vac |
| Adjustment Angle | 265° nom. |
Environmental Characteristics
| Power Rating (200 volts max.) | 1 watt (70°C), 0 watt (125°C) |
|---|---|
| Temperature Range | -55°C to +125°C |
| Temperature Coefficient | ±250×10-6/°C or ±100×10-6/°C |
| Vibration | 98 m/s2, 1%ΔTR |
| Shock | 490 m/s2, 1%ΔTR |
| Load Life | 1,000 hours 1 watt @ 70°C (5%ΔTR) |
| Rotational Life | 10000 cycles: (15%ΔTR; 6%, CRV) |
Physical Characteristics
| Mechanical Angle | 305° nom. |
|---|---|
| Torque | (3.5~50) mN*m |
| Stop Strength | 350 mN*m min. |
Product Size
Application Areas
P16NP metal ceramic rotary potentiometer is ideal for: Network communication systems, Night vision goggles, Audio headsets, Communication devices, Remote controls, Hot air blowers, Spotlights for scenes, Air fan controls, Industrial dashboards, Variable frequency drives, and Electric wheelchairs.
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
