WH3012P 30mm 45mm Stereo Dual Sliding Potentiometer B10K Travel Sliding Potentiometer
جزئیات محصول:
| محل منبع: | Dongguan ， Guangdong ، چین |
| نام تجاری: | Uchi |
| گواهی: | SMC |
| شماره مدل: | WH3012P |
پرداخت:
| مقدار حداقل تعداد سفارش: | 100 قطعه |
|---|---|
| قیمت: | قابل مذاکره |
| شرایط پرداخت: | T/T، پی پال، وسترن یونیون، مانی گرام |
| قابلیت ارائه: | 50000000 قطعه در هر ماه |
|
اطلاعات تکمیلی |
|||
| مقاومت کامل: | 10K Ω±20٪ | مخروطی مقاومت: | A، B، C، D، E، MN، RD، W، |
|---|---|---|---|
| Max. حداکثر Operation Voltage ولتاژ عملیات: | مخروطی خطی B: AC 200 V~DC / V | قدرت امتیازی: | تک واحدی: مخروطی خطی B: 0.2 وات، مخروط های دیگر: 0.05 وات دو واحد: مخروطی خطی B: 0.1 وات، مخروط های |
| سر و صدای لغزش: | کمتر از 100 میلی ولت | مقاومت عایق: | بیش از 100 مگا اهم در جریان DC 250 ولت |
| مقاومت در برابر ولتاژ: | 1 دقیقه در AC 300 V | مقاومت باقیمانده: | مدت. 1~2: کمتر از 10 Ω |
| خطای باند (دو واحد): | -40 دسی بل ~ 0 دسی بل ± 3 دسی بل | ||
| برجسته کردن: | 30mm stereo sliding potentiometer B10K,45mm dual sliding potentiometer with warranty,travel sliding potentiometer for precision control,45mm dual sliding potentiometer with warranty,travel sliding potentiometer for precision control |
||
توضیحات محصول

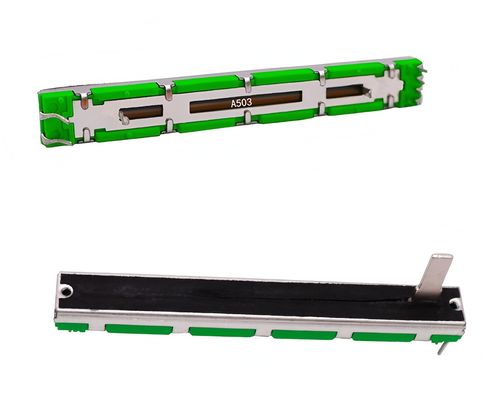

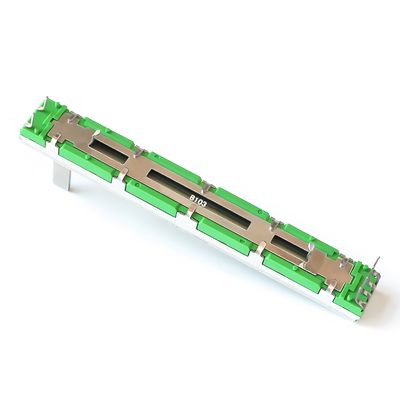

The WH3012P is a high-precision stereo dual sliding potentiometer featuring a 60mm travel range. This sliding resistor uses a resistance wire wound around insulation material with a sliding film contact point to regulate circuit resistance. Ideal for amplifiers, filters, and other electronic devices requiring precise resistance adjustment.
- Total length: 75mm (7.5cm)
- Width: 9mm (0.9cm)
- Thickness: 6.5mm (0.65cm)
- Handle height: 15mm (1.5cm), width: 4mm (0.4cm)
- Stroke length: 60mm (6cm)
- Pin configuration: 4-2 pins
- Resistance: A10K
- Channel: Dual channel
- Precision adjustment with smooth sliding operation
- High accuracy for sensitive electronic circuits
- Simple yet durable construction
- Wide resistance adjustment range
- Versatile applications in amplifiers, filters, and oscillators
| Parameter | Value |
|---|---|
| Total Resistance | 10K Ω±20% |
| Resistance Taper | A, B, C, D, E, MN, RD, W |
| Max. Operation Voltage | Linear Taper B: AC 200V~DC/V Other Tapers: AC 150V~DC/V |
| Rated Power | Single unit: Linear taper B: 0.2W, Other tapers: 0.05W Dual unit: Linear taper B: 0.1W, Other tapers: 0.025W |
| Sliding Noise | Less than 100mV |
| Insulation Resistance | More than 100MΩ at DC 250V |
| Withstand Voltage | 1 minute at AC 300V |
| Residual Resistance | Term. 1~2: Less than 10Ω Term. 2~3: Less than 10Ω |
| Gang Error (Dual Unit) | -40dB ~ 0dB ± 3dB |
| Parameter | Value |
|---|---|
| Total Sliding Travel | 60.0mm ± 0.5mm |
| Operating Force | 10~100gf |
| Sliding Stopper Strength | 5.0Kgf.cm Min. |
| Push-Pull Strength | 3.0Kgf.cm Min. at 5-10 sec |
| Number of Detents (Click) | 1C (Center Detent), 7C, 11C, 21C, 41C |
| Resistance to Soldering Heat | Solder dip: Preheating to 100℃ in 1 min, 260±5℃ for 5 sec Manual Soldering: Less than 300℃ for under 3 sec |
| Sliding Life | 10,000 cycles (Min.) |
This linear slide potentiometer is widely used in audio equipment, mechanical control systems, and instrumentation. Its reliable performance and straightforward design make it a preferred choice for electronic engineers and manufacturers.
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
We are a factory offering direct pricing with professional technical support.
Samples are available upon request after order placement.
We accept OEM/ODM orders with flexible requirements.
Delivery varies by quantity and model, with urgent requests accommodated when possible.
We provide comprehensive 24-hour support for all products.
