MT010 Electric Lifting Desk Motor With Overload Protection Collision Detection
جزئیات محصول:
| محل منبع: | دونگوان چین |
| نام تجاری: | UCHI |
| گواهی: | Completed |
| شماره مدل: | MT010 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1000 قطعه قطعه |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | استاندارد |
| زمان تحویل: | 5-7 روز |
| شرایط پرداخت: | T/T ، Western Union |
| قابلیت ارائه: | 5000 عدد کوک |
|
اطلاعات تکمیلی |
|||
| قدرت دارای امتیاز: | حداکثر 80 وات | ولتاژ اسمی: | DC24V |
|---|---|---|---|
| گواهی: | 3 درجه سانتیگراد | سرعت چرخش: | حداکثر 180 دور در دقیقه |
| سالن: | تک/دوگانه | کاهش نسبت: | 44 |
| عدد قطب مغناطیسی: | یک جفت | اندازه روتور: | 3025/3041 |
| پیچ خوردگی: | 7n.m Max | ||
| برجسته کردن: | Collision Detection Lifting Desk Motor,MT010 Lifting Desk Motor,Overload Protection Lifting Desk Motor,MT010 Lifting Desk Motor,Overload Protection Lifting Desk Motor |
||
توضیحات محصول

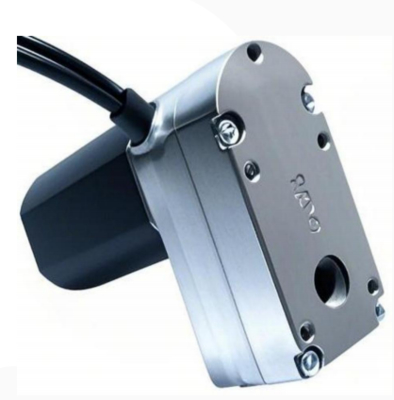

MT010 Electric Lifting Desk Motor With Overload Protection Collision Detection
| Voltage | DC24 | DC24 | DC24 | DC24 |
| Power | 80 W | 60W | 80W | 60W |
| Rotate Speed | 180 RPM | 180RPM | 90RPM | 90RPM |
| Torsion | 4N.M | 2N.M | 7N.M | 3N.M |
| Reduction on Ratio | 32.6 | 32.5 | 65 | 65 |
| Hall | Single/Dual | Single/Dual | Single/Dual | Single/Dual |
| Magnetic Pole Number | A pair | A pair | A pair | A pair |
| Rotor Size | 3041 | 3025 | 3041 | 3025 |
Product features:
1.Aluminum alloy die-casting housing, double worm gear and worm drive.Zinc Alloy Die-Casting Enclosure.
2.Customized wire length and sequence.
3.Horizontal installation inside the hidden table frame.
4.Optional brake at motor tail end.
Safety and Protection
-
Overheat Protection:The MT010 motor includes built-in overheat protection to prevent damage from excessive temperatures.
-
Overload Protection:It also features overload protection, which cuts off the power when the load exceeds the rated capacity, ensuring the motor's longevity.
Design and Compatibility
-
Dual Motor System:The MT010 often uses a dual motor system, with one motor on each side of the desk. This ensures even and synchronized lifting of the desk's legs, providing stability and reliability.
-
Versatile Applications:It is suitable for a wide range of desktop materials and sizes, making it a versatile choice for both home and office environments.
