BLDC 3630 Brushless Motors For Industry Apparatus And Home Application
جزئیات محصول:
| محل منبع: | دونگوان چین |
| نام تجاری: | UCHI |
| گواهی: | Completed |
| شماره مدل: | BLDC 3630 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1000 قطعه قطعه |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | استاندارد |
| زمان تحویل: | 5-7 روز |
| شرایط پرداخت: | T/T ، Western Union |
| قابلیت ارائه: | 5000 عدد کوک |
|
اطلاعات تکمیلی |
|||
| دامنه عملیاتی: | 9V ~ 14V/19V ~ 26V | اسمی: | ثابت 12 ولت/24 ولت |
|---|---|---|---|
| گواهی: | 3 درجه سانتیگراد | سرعت بدون بار r/min: | حداکثر 11900 دور در دقیقه |
| جریان بدون بار a: | 0.35 حداکثر | سرعت با حداکثر کارایی: | حداکثر 9065 دور در دقیقه |
| جریان با حداکثر کارایی: | حداکثر 1.08a | EFF در حداکثر کارایی: | حداکثر 61.0 ٪ |
| برجسته کردن: | Industry Apparatus Brushless Motor,3630 Brushless Motor,3630 Brushless Motor |
||
توضیحات محصول

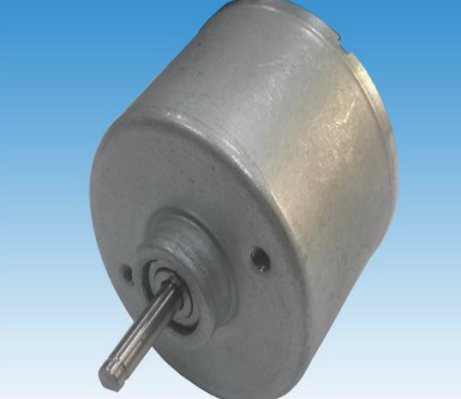

BLDC 3630 Brushless Motors For Industry Apparatus And Personal Care

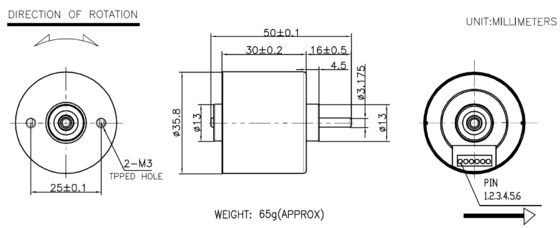

A BLDC 3630 brushless motor is a type of permanent magnet synchronous motor (PMSM) that operates without brushes and a mechanical commutator. Instead, it relies on an electronic controller to manage the flow of current through the motor windings. The "3630" designation typically refers to the motor's physical dimensions, where "36" represents the outer diameter in millimeters and "30" represents the length in millimeters.

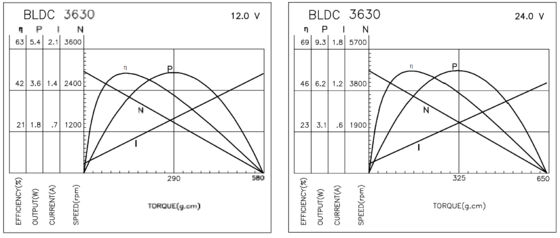

Brushless Motor Technical Data
TYPICAL APPLICATION:
1.Industry Apparatus
2.Personal Care
3.Home Application
Features
-
High Efficiency and Low Maintenance: BLDC motors eliminate the need for brushes and mechanical commutation, reducing energy losses and wear, resulting in higher efficiency and lower maintenance costs.
-
Compact Size and High Power Density: Despite its small size (36mm diameter and 30mm length), the BLDC 3630 motor can deliver significant power, making it suitable for applications where space is limited but high performance is required.
-
Wide Speed Range and Precise Control: These motors can operate over a wide range of speeds and can be precisely controlled using PWM (Pulse Width Modulation) for speed regulation
