BLDC 3626 Brushless Motors For Industry Apparatus And Personal Care
جزئیات محصول:
| محل منبع: | دونگوان چین |
| نام تجاری: | UCHI |
| گواهی: | Completed |
| شماره مدل: | BLDC 3626 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1000 قطعه قطعه |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | استاندارد |
| زمان تحویل: | 5-7 روز |
| شرایط پرداخت: | T/T ، Western Union |
| قابلیت ارائه: | 5000 عدد کوک |
|
اطلاعات تکمیلی |
|||
| دامنه عملیاتی: | 9V ~ 14V/19V ~ 26V | اسمی: | ثابت 12 ولت/24 ولت |
|---|---|---|---|
| گواهی: | 3 درجه سانتیگراد | سرعت بدون بار r/min: | حداکثر 11900 دور در دقیقه |
| جریان بدون بار a: | 0.35 حداکثر | سرعت با حداکثر کارایی: | حداکثر 9065 دور در دقیقه |
| جریان با حداکثر کارایی: | حداکثر 1.08a | EFF در حداکثر کارایی: | حداکثر 61.0 ٪ |
| برجسته کردن: | 3626 Brushless Motors,Brushless Motors For Industry Apparatus,Brushless Motors For Personal Care,Brushless Motors For Industry Apparatus,Brushless Motors For Personal Care |
||
توضیحات محصول

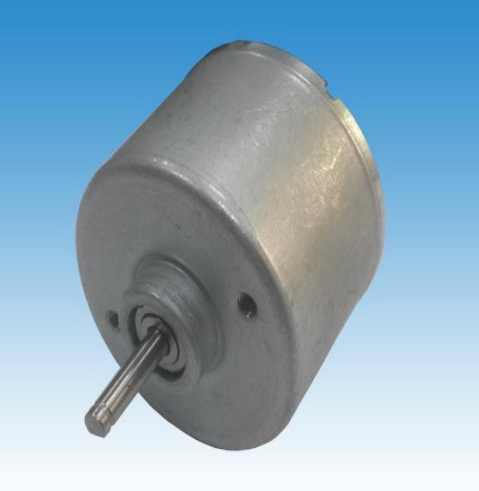

BLDC 3626 Brushless Motors For Industry Apparatus And Personal Care

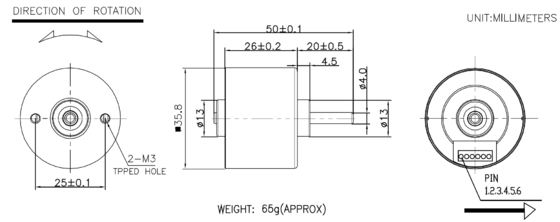

A BLDC 3626 brushless motor is a permanent magnet synchronous motor (PMSM) that operates without brushes and a mechanical commutator. Instead, it relies on electronic controllers to manage the flow of current through the motor windings. The "3626" in its name typically refers to the motor's physical dimensions, where "36" represents the outer diameter in millimeters and "26" represents the length in millimeters. This specific size makes it suitable for a wide range of applications where compactness and high performance are required.

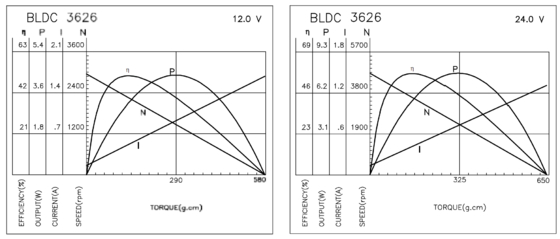

Brushless Motor Technical Data
TYPICAL APPLICATION:
1.Industry Apparatus
2.Personal Care
3.Home Application
Features
-
High Efficiency and Power Density: BLDC motors eliminate the need for brushes and mechanical commutators, reducing energy losses due to friction and electrical resistance. This results in higher overall efficiency compared to brushed DC motors.
-
Low Noise and Vibration: The design of BLDC motors minimizes mechanical noise. The lack of brushes also reduces electrical noise, making them suitable for applications where low noise levels are crucial.
