BLDC 75100 Brushless Motors For Home Application And Business Equipment
جزئیات محصول:
| محل منبع: | دونگوان چین |
| نام تجاری: | UCHI |
| گواهی: | Completed |
| شماره مدل: | BLDC 75100 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1000 قطعه قطعه |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | استاندارد |
| زمان تحویل: | 5-7 روز |
| شرایط پرداخت: | T/T ، Western Union |
| قابلیت ارائه: | 5000 عدد کوک |
|
اطلاعات تکمیلی |
|||
| بدون ولتاژ بار: | 220.4 ولت | سرعت در Eff Max: | 1489rpm |
|---|---|---|---|
| گواهی: | 3 درجه سانتیگراد | حداکثر: | 398.9w |
| حداکثر گشتاور: | 2.607mn.m | ||
| برجسته کردن: | Business Equipment BLDC Brushless Motors,75100 BLDC Brushless Motors,75100 BLDC Brushless Motors |
||
توضیحات محصول
BLDC 75100 Brushless Motors For Home Application And Business Equipment
Typical Applications:
1. Home Application
2. Business Equipment

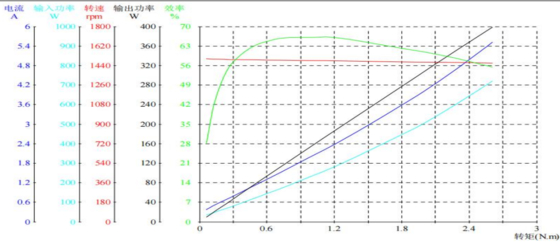

Brushless Motor Technical Data
| Point | VOLTAGE | CURRENT | INPUT POWER | SPEED | TORQUE | OUTPUT POWER | EFFICIENCY | POWER FACTOR | FREQUENCY | TIME |
| V | A | W | RPM | mN.m | W | % | Hz | S | ||
| NO LOAD | 220.4 | 0.377 | 34.89 | 1502 | 0.064 | 10.06 | 28.8 | 0.42 | 50.02 | 0 |
| EFF MAX | 200.2 | 1.589 | 178 | 1489 | 0.763 | 118.8 | 66.8 | 0.509 | 50.01 | 19.11 |
| POUT MAX | 219.8 | 5.511 | 720.4 | 1462 | 2.607 | 398.9 | 55.4 | 0.595 | 50.02 | 31.78 |
| TORQUE MAX | 219.8 | 5.511 | 720.4 | 1462 | 2.607 | 398.9 | 55.4 | 0.595 | 50.02 | 31.78 |
| END | 219.8 | 5.511 | 720.4 | 1462 | 2.607 | 398.9 | 55.4 | 0.595 | 50.02 | 31.78 |
Features:
- High Efficiency: BLDC motors are highly efficient because they eliminate the mechanical energy loss due to friction in brushed motors. This efficiency is particularly advantageous in battery-powered applications where energy conservation is crucial.
- Long Lifespan: The absence of brushes means there is no brush and commutator erosion, which significantly extends the motor's lifespan. The lifespan is usually limited only by the bearings.
- High Power-to-Weight Ratio: BLDC motors can deliver high power relative to their size and weight. This makes them ideal for applications where weight and space are critical, such as in model aircraft and drones.
