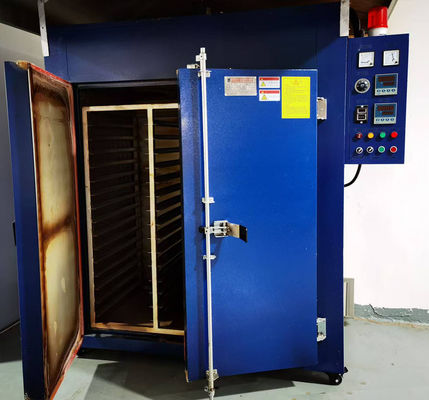

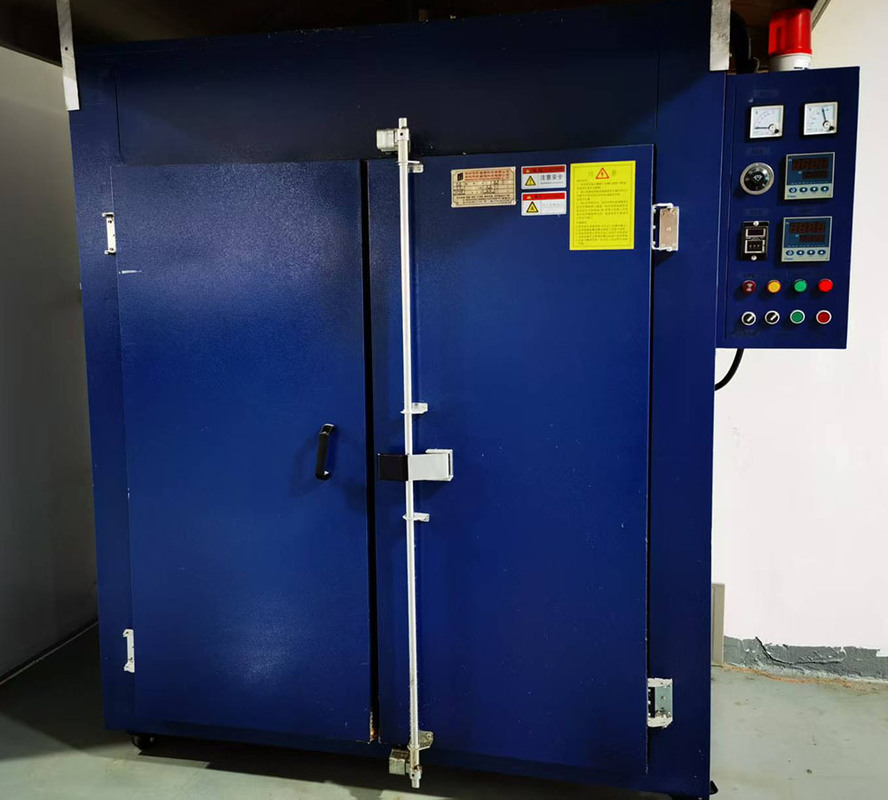

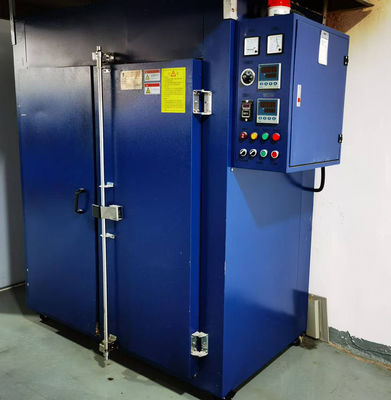

Thermal Circulation Single-temperature Single-control Curing Oven For Varistor Production Equipment
جزئیات محصول:
| محل منبع: | Dongguan ， Guangdong ، چین |
| نام تجاری: | UCHI |
| گواهی: | SGS.UL |
| شماره مدل: | YC-KX |
پرداخت:
| مقدار حداقل تعداد سفارش: | 5000 قطعه |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | انبوه |
| زمان تحویل: | 5-7 روز |
| شرایط پرداخت: | T/T، پی پال، وسترن یونیون، گرم پول |
| قابلیت ارائه: | 5000000000 PCS در ماه |
|
اطلاعات تکمیلی |
|||
| برجسته کردن: | thermal circulation curing oven,single-temperature varistor oven,varistor production curing equipment,single-temperature varistor oven,varistor production curing equipment |
||
|---|---|---|---|
توضیحات محصول
Thermal Circulation Single-temperature Single-control Curing Oven for Varistor Production
This precision curing oven is specifically designed for varistor production, featuring advanced thermal circulation technology and precise temperature control for consistent, high-quality results.
Key Features
- Single-temperature, single-control system for precise curing
- Forced thermal circulation with ±3℃ temperature uniformity
- Digital PID temperature control with power-saving function
- 6-channel real-time temperature monitoring system
- Over-temperature protection and automatic timing functions
- High-capacity design with 45-grill capacity
Technical Specifications
| Dimensions (H*W*D) | 1400 * 1280 * 740 mm |
|---|---|
| Construction | 1.5mm cold-rolled steel exterior with bright blue baked varnish finish |
| Heating System | 12KW, 380V heater with two-stage control |
| Temperature Range | Room temperature to 250°C (adjustable) |
| Control System | Yudian digital display PID controller with thyristor output |
| Air Circulation | 750W Taiwan motor with horizontal airflow |
| Capacity | 45 grills (15 layers * 3 compartments) |
Advanced Control Features
The oven features a comprehensive control system including:
- Yudian digital PID temperature controller with analog output
- Three-phase thyristor output for gradual power adjustment
- 30% power-saving function
- Yuguang over-temperature protection system
- Manual and automatic timing functions
- 6-point temperature monitoring system
Baking Cart Specifications
The integrated baking cart features a durable welded construction:
- Main frame: 30*30mm iron square tubes
- Shelves: 30*30mm angle steel
- 15-layer configuration with 3 compartments
- Fixed position design for stable operation
Operation Sequence
The automated process ensures consistent results:
- Temperature reaches set point → Timer activates
- Timer completes → Heating cuts off (air supply continues)
- Secondary timer completes → Full power cutoff
