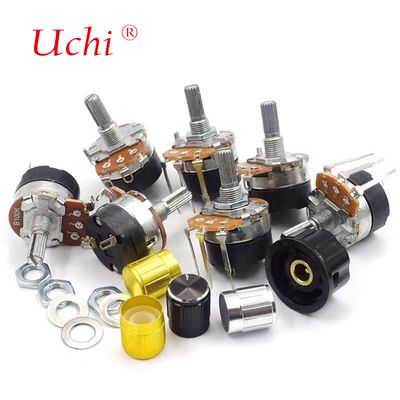

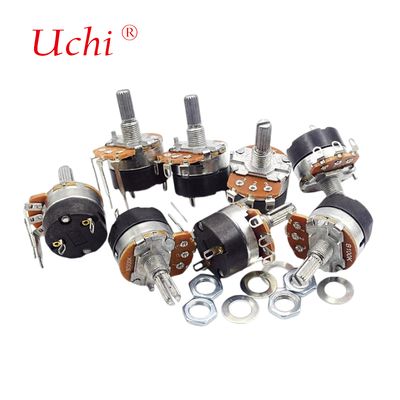

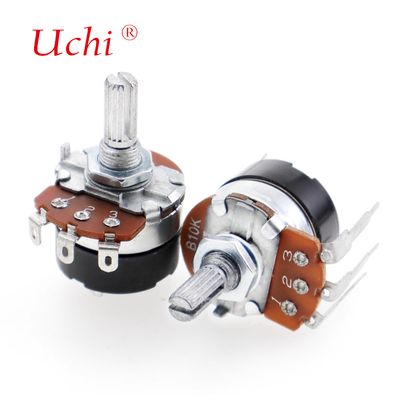

WH138 Resistance Speed Regulator 24mm Carbon Film Rotary Potentiometer
جزئیات محصول:
| محل منبع: | Dongguan ， Guangdong ، چین |
| نام تجاری: | Uchi |
| گواهی: | SMC |
| شماره مدل: | WH138 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 100 قطعه |
|---|---|
| قیمت: | قابل مذاکره |
| شرایط پرداخت: | T/T، پی پال، وسترن یونیون، مانی گرام |
| قابلیت ارائه: | 50000000 قطعه در هر ماه |
|
اطلاعات تکمیلی |
|||
| مقاومت: | 1KΩ~2MΩ | محدوده دما: | منحنی B: 0.5W منحنی دیگر B: 0.25W |
|---|---|---|---|
| حداکثر ولتاژ کار: | منحنی B: 500 ولت منحنی دیگر B: 250 ولت | قانون مقاومت: | A,B,C |
| زاویه چرخش کل: | 5±300 درجه | تحمل مقاومت: | ± 20 (%) |
| ویژگی ها: | پتانسیومتر فیلم کربنی | تحمل مقاومت را مجاز کنید: | ±20% (1MΩ یا بیشتر30%) |
| گشتاور دورانی: | 2~20 mN.m (20~200gf.cm) | عمر چرخشی: | 10000 چرخه |
| برجسته کردن: | 24mm carbon film potentiometer,rotary speed regulator potentiometer,WH138 resistance speed controller,rotary speed regulator potentiometer,WH138 resistance speed controller |
||
توضیحات محصول
WH138 Resistance Speed Regulator 24mm Carbon Film Rotary Potentiometer
High-quality carbon film rotary potentiometer designed for precise speed regulation in various electronic applications.
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Temperature Range | -10℃~70℃ |
| Rated Power | Curve B: 0.5W Other curve B: 0.25W |
| Max Operation Voltage | Curve B: 500V Other curve B: 250V |
| Resistance Range | 1KΩ~2MΩ |
| Allowable Resistance Tolerance | ±20% (1MΩ or more 30%) |
| Rotational Noise | ≤47mV |
| Terminal Resistance | R≥250KΩ: 0.1%R max 250KΩ>R>10KΩ: 20Ω max 10KΩ≥R: 10Ω max |
| Resistance Law | A, B, C |
| Dielectric | AC500V, 1 minute |
| Insulation Resistance | More than 100MΩ at DC500V |
Mechanical Characteristics
| Parameter | Specification |
|---|---|
| Rotational Torque | 2~20 mN.m (20～200gf.cm) |
| Total Rotational Angle | 300°±5° |
| Rotary Life | 10,000 cycles |
| Shaft Stopper Strength | 6Kgf.cm |
| Soldering | Temperature T≤265℃: time ts5s |
