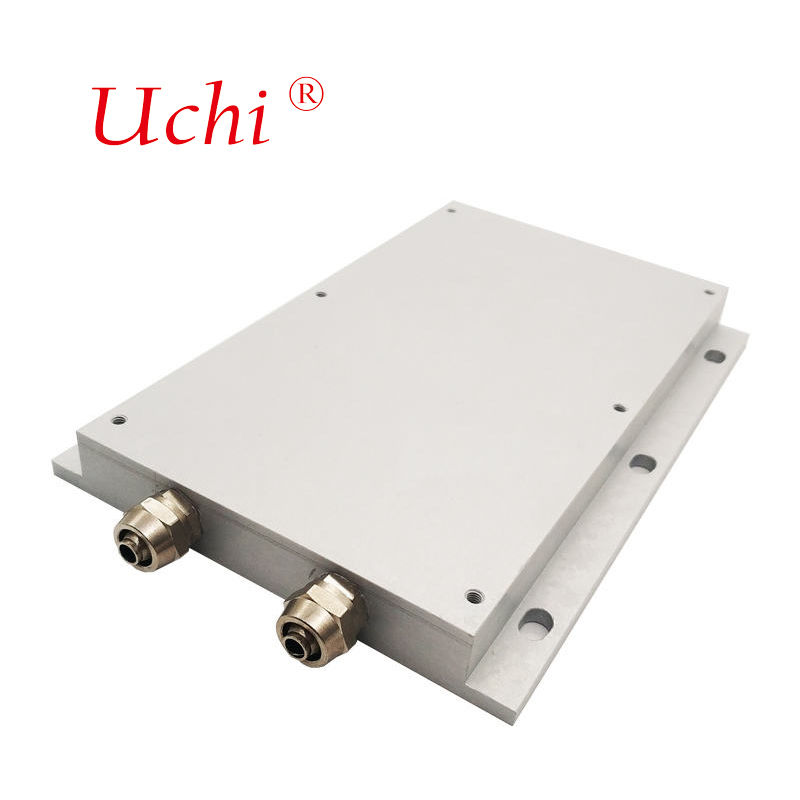

The Water-cooled Plate Aluminum Water-cooled Block Brazing CNC Processing Water-cooled Plate Improves The Cooling Effect
جزئیات محصول:
| محل منبع: | Dongguan ， Guangdong ، چین |
| نام تجاری: | Uchi |
| گواهی: | SMC |
| شماره مدل: | صفحه خنک کننده 16 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 100 قطعه |
|---|---|
| قیمت: | قابل مذاکره |
| شرایط پرداخت: | T/T، پی پال، وسترن یونیون، مانی گرام |
| قابلیت ارائه: | 50000000 قطعه در هر ماه |
|
اطلاعات تکمیلی |
|||
| گارانتی: | 1 سال | ابعاد (L*W*H): | تا 1.2*1 متر طول عرضی |
|---|---|---|---|
| صافی سطح: | 0.1 میلی متر | تکنیک اصلی: | ماشینکاری CNC |
| مایع خنک کننده: | آب دیونیزه، گلیکول و آب مهار شده، دی الکتریک... | وزن ناخالص: | 5000 کیلوگرم |
| اندازه تک بسته: | 21X14X11 سانتی متر | مواد: | آلیاژ آلومینیوم |
| زبری سطح: | 3.2 um | فشار کاری: | حداقل 1 بار |
| برجسته کردن: | aluminum water-cooled block,CNC processed liquid cooling plate,water-cooled plate with brazing,CNC processed liquid cooling plate,water-cooled plate with brazing |
||
توضیحات محصول
Water-cooled Plate Aluminum Water-cooled Block
Brazed CNC Processing Water-cooled Plate Improves Cooling Effect
Customized Liquid Cold Plate Aluminum Cold Cooling Plate New Type Large Water Compressor Liquid Thermal Plate.
This aluminum water cooling block features brazed CNC machining for improved cooling performance. With a cooling
capacity of 200W, surface roughness of Ra 3.2 um, and flatness of 0.1 mm, it ensures efficient heat dissipation.
The product supports working pressures of at least 1 bar and is compatible with coolants like deionized water and
dielectric fluid. Certified by CE, it ensures compliance with EU safety standards.
Product Specifications
| No. | Item Description | Content |
|---|---|---|
| 1 | Product name | Aluminum cold plate |
| 2 | Material | Aluminum alloy like 3003, 6061 and 6063 |
| 3 | Dimension LxWxH | Up to 1.2*1m L*W |
| 4 | Cooling capacity | 200 W |
| 5 | Surface roughness | Ra 3.2 um |
| 6 | Flatness | 0.1 mm |
| 7 | Working Pressure | At least 1 bar |
| 8 | Joining Method | Brazing, welding or other suitable techniques |
| 9 | Manufacturing technique for inner passage | CNC machining, extrusion or other suitable processes |
| 10 | Recommended Coolants | Deionized Water, Inhibited Glycol and Water, Dielectric fluid |
| 11 | Surface finish | Mill finish, anodization or chemical coating |
| 12 | Place of Origin | China |
| 13 | Packing way | To be packed in carton box or plywood case with films protection |
Manufacturing Processes
Vacuum Brazing Furnace
CNC Machining
Aluminum Extrusion
Skiving production line
Die casting production line
Aluminum Extrusion
Applications
- Lasers
- Medical equipment
- EV power battery pack cooling
- Power electronics
- Motor drive devices
- Microwave 5G transmission
- Renewable energy system
- IGBT and Power Semi-Conductor Systems
- Data Centres
- Industrial Power Applications
- Defence Systems
- Avionics
- Fuel Cells
- Traction Systems

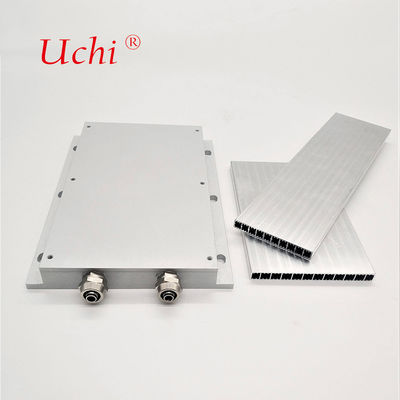

Detailed view of cooling plate water channels
Production Capabilities
25 CNC machines, 10 stamping machines, 2 friction welding machines, 2 large thermal blowers,
4 wire cutting machines, 2 spark machines, 4 milling machines and 3 grinding machines.
Quality Assurance
1 Coordinate Measuring Machine, 1 projector instrument, 2 water high pressure testing machines,
4 thermal resistance testing machines, and 2 liquid leakage testing machines.
Customer Service
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience
and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
