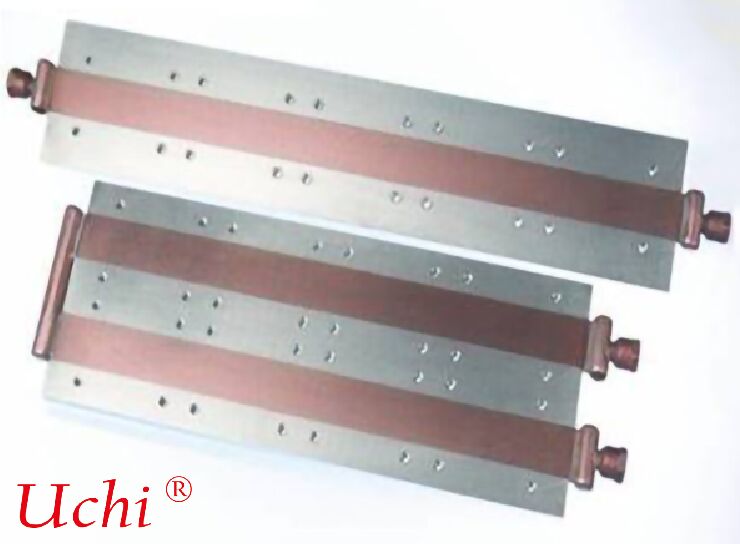

• Radiator-Integrated Liquid Cooling Plate Integrated Heat Dissipation Fins
Radiator-Integrated Liquid Cooling Plate Integrated Heat Dissipation Fins

Radiator-Integrated Liquid Cooling Plate Integrated Heat Dissipation Fins

جزئیات محصول:

محل منبع: دونگوان، گوانگدونگ، چین
نام تجاری: Uchi
گواهی: SMC
شماره مدل: سینک حرارتی

پرداخت:

مقدار حداقل تعداد سفارش: 100 عدد
قیمت: 1300-1500 dollars
زمان تحویل: محدود نیست
شرایط پرداخت: T/T، پی پال، وسترن یونیون، مانی گرام
قابلیت ارائه: 50000000 عدد در ماه
بهترین قیمت مخاطب

اطلاعات تکمیلی
مواد هیت سینک: آلومینیوم پایان سطح: پایان آسیاب یا آندایزاسیون
مواد: مس / آلومینیوم زندگی هواداران: 100000 ساعت
روند کار: ماشینکاری Cnc قدرت هدایت: 2000 وات
تحمل: ± 1% فرآیند اضافی: ماشینکاری Cnc
دقت: 0.002 ± 0.005 ± میلی متر حداکثر فشار: 5 بار
محدوده دمای عملیاتی: -40 تا 120 درجه سانتی گراد بافت مواد: 6061
برجسته کردن:

Radiator-integrated liquid cooling plate,Liquid cooling plate with heat dissipation fins,High-performance liquid cooling radiator plate

,

Liquid cooling plate with heat dissipation fins

,

High-performance liquid cooling radiator plate

توضیحات محصول

Radiator-Integrated Liquid Cooling Plate


In simple terms: Radiator-Integrated Liquid Cooling Plate = Liquid cooling plate + integrated heat dissipation fins

It attaches to heat-generating devices on one side and features dense fins on the other. Heat is transferred to the fin area via coolant circulation, forming a compact, all-in-one liquid cooling solution.


I. Structural Features



Bonding Surface (Cold Plate Side)


Flat surface that directly attaches to IGBTs, power modules, batteries, motors and other heat-generating components.


Fin Heat Dissipation Side (Radiator Side)


Internal flow channels extend into the dense fin region, forming a structure similar to a radiator.

As coolant flows through, heat is carried to the fins and dissipated via air cooling or natural convection.


Fully Integrated Structure


Mostly manufactured as one piece through skiving, die-casting or brazing,

eliminating the complex assembly of separate radiators and water tubes.


II. Working Principle


  1. Heat from components → conducts to the liquid cooling plate base
  2. Coolant flows through internal channels and absorbs heat
  3. Heated coolant flows into the finned radiator section
  4. Fins release heat into the environment via fans or natural airflow
  5. Cooled coolant circulates back to repeat the process

It is a hybrid solution combining liquid cooling heat transfer and air cooling final dissipation.


III. Core Advantages


  • Compact structure & high integration

    All-in-one design saves space, reduces connectors and leakage points.

  • Simple installation

    Directly mounted to components; only an external pump and reservoir are needed, no extra radiator required.

  • Uniform heat dissipation

    Excellent temperature uniformity on the base plate, avoiding local hotspots.

  • High reliability

    Brazed or skived structure provides strong vibration resistance, ideal for automotive and industrial control applications.



IV. Common Manufacturing Processes


  • Skived Radiator-Integrated Liquid Cooling Plate

    Fins and flow channels machined from a single aluminum block, offering high strength and continuous thermal conductivity.

  • Vacuum Brazed Type

    Base plate and fins joined by brazing, with denser fins and larger heat dissipation area.

  • Integral Die-Casting Type

    Suitable for mass production and low cost, widely used in passenger vehicle thermal management.



V. Typical Applications


  • New energy vehicles: integrated cooling for motors, ECU, OBC, DC-DC converters
  • Energy storage converters (PCS), photovoltaic inverters
  • Industrial servo drives, high-power power supplies
  • Laser equipment, welding machines, high-frequency power supplies
  • Construction machinery, commercial vehicle controller cooling


VI. Difference from Standard Liquid Cooling Plates


  • Standard liquid cooling plate: only absorbs and transfers heat; does not dissipate heat directly to the environment.
  • Radiator-integrated liquid cooling plate: absorbs heat, circulates internally, and dissipates heat via its own fins, forming a complete compact cooling system.
