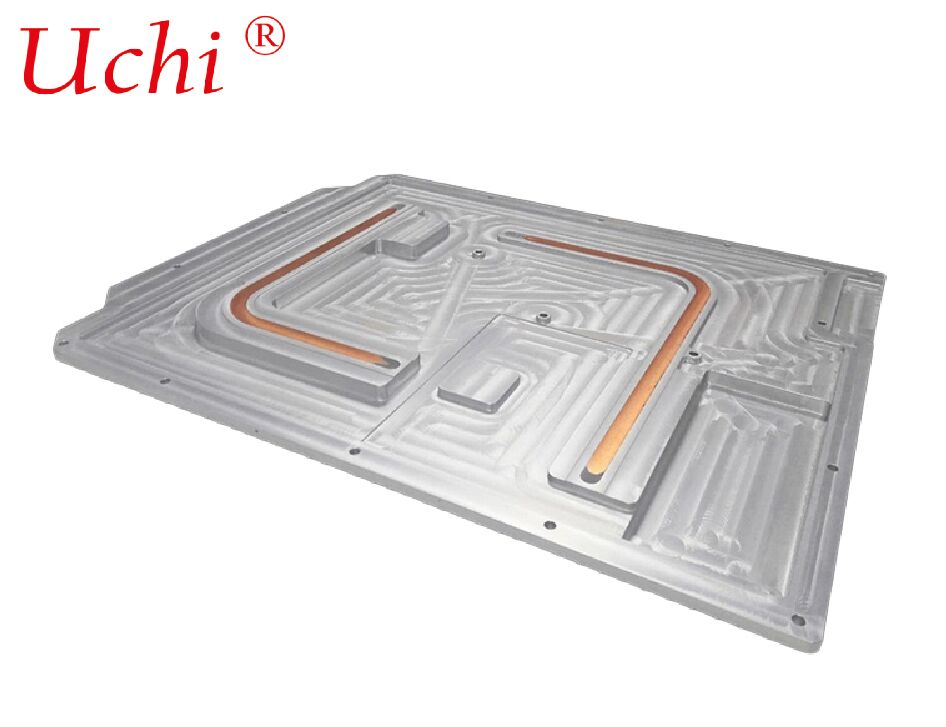

Aluminum Extrusion Plate Heat Sink With 2 Heat Pipes Friction Welding Heat Sink
جزئیات محصول:
| محل منبع: | دونگوان، گوانگدونگ، چین |
| نام تجاری: | UCHI |
| گواهی: | UL.VDE,SGS,REACH,CQC,CSA.ISO.ROHS,CUL |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1000 عدد |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | فله |
| زمان تحویل: | 5-7 روز |
| شرایط پرداخت: | T/T، پی پال، وسترن یونیون، گرم پول |
| قابلیت ارائه: | 5000000000 PCS در ماه |
|
اطلاعات تکمیلی |
|||
| عرض: | با توجه به تقاضای مشتری | قطر: | 12 میلی متر |
|---|---|---|---|
| ارتفاع: | 2000 متر | حداکثر دمای عملیاتی: | 120 درجه سانتی گراد |
| وزن محصول: | 5.2 کیلوگرم | اندازه محصول: | 244.5 * 118 * 14.5 میلی متر |
| شکل: | سفارشی | قدرت هدایت حرارتی: | 278 وات |
| صنایع قابل اجرا: | تعمیرگاه های ماشین آلات، انرژی و معدن | درمان: | غیرفعال سازی هدایت حرارتی |
| اندازه نصب: | 10 * 20 | نوع نصب: | پایه پیچ |
| قدرت: | 152 W | برنامه: | منبع نور لیزر RGB |
| برجسته کردن: | aluminum extrusion plate heat sink,heat sink with 2 heat pipes,friction welding heat sink |
||
توضیحات محصول
Aluminum Extrusion Plate Heat Sink With 2 Heat Pipes Friction Welding Heat Sink
Product parameters of Aluminum Extrusion Plate Heat Sink With 2 Heat Pipes Friction Welding Heat Sink
Material: AL 6061
Size:260*260*45mm
Technology: friction welding stir+CNC machined
Feature: Good cooling capability and No leakage default
Surface treatment: oil cleared,cleaned and passivation
Heat conducting power: 400W
Aluminum Extruded Plate Heat Sink with 2 Heat Pipes Joined by Friction Stir Welding (FSW)
This heat sink is mainly constructed of 6063/6061 aluminum extruded profiles, with 2 built‑in copper heat pipes. The heat pipes are seamlessly metallurgically bonded to the aluminum base via Friction Stir Welding (FSW). It combines the mass‑production cost advantage of aluminum extrusion, the ultra‑fast temperature equalization capacity of heat pipes, and structural reliability with ultra‑low thermal resistance from friction stir welding. It serves as a mainstream high‑efficiency cooling solution for medium‑to‑high‑power electronic devices.
I. Core Structural Composition
Aluminum Extruded Main Body
Integrally extruded plate‑shaped aluminum base with vertical cooling fins. Dense and regular fins provide large ventilation and heat dissipation area. Two pre‑embedded heat pipe grooves are milled on the base for 2 heat pipes, which can be arranged in parallel or staggered layout.
2 Heat Pipes
Commonly Φ6/Φ8 sintered copper heat pipes with sealed ends, pre‑embedded into the grooves of the aluminum base. They conduct rapid lateral heat transfer and uniform heat spreading, eliminating local hot spots on the aluminum base.
Friction Stir Welding Joint Layer
Solid‑state welding is adopted with no melting, cold solder joints or brazing filler. The outer wall of heat pipes is directly metallurgically bonded to the aluminum groove walls, completely eliminating air‑gap thermal resistance caused by traditional tin soldering or pipe pressing.
Surface Treatment
Anodizing, black electrophoretic coating and nickel plating to improve corrosion resistance, oxidation resistance and radiative heat dissipation capacity.
